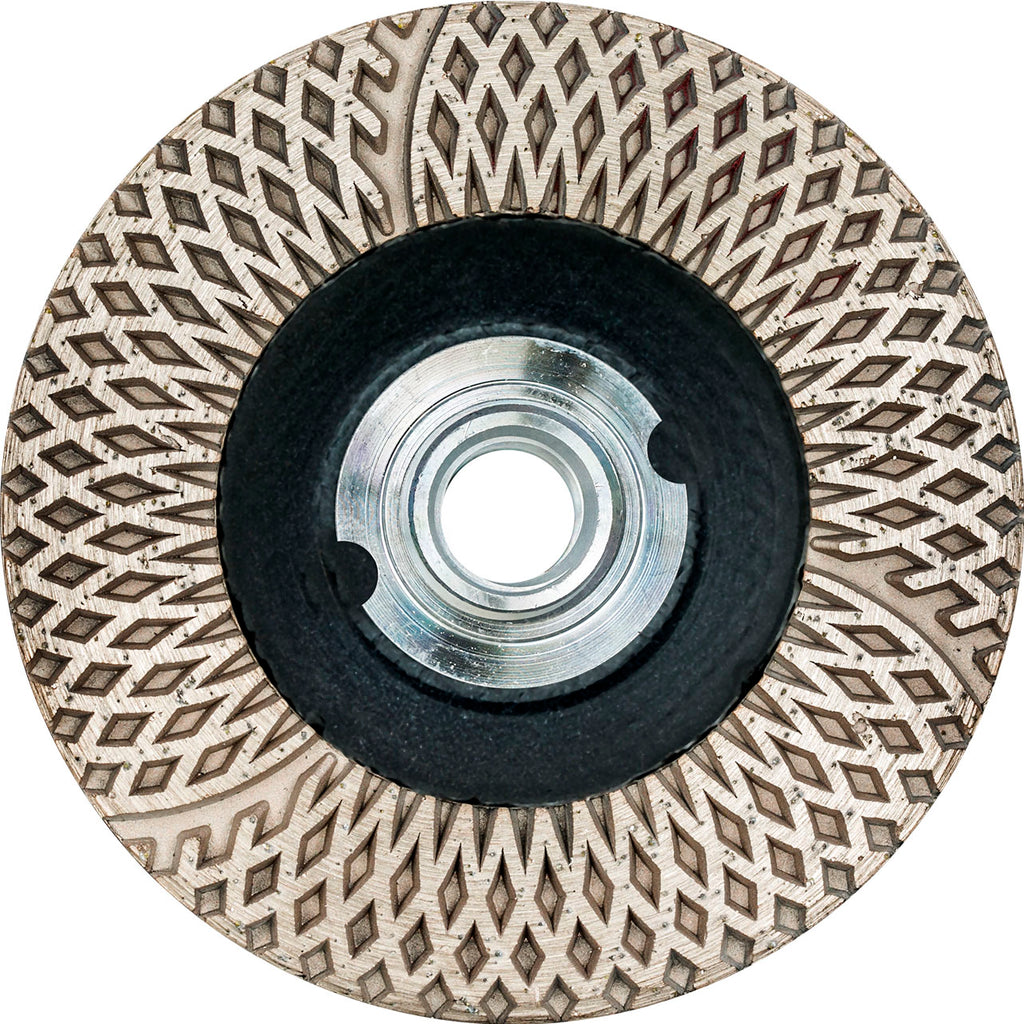

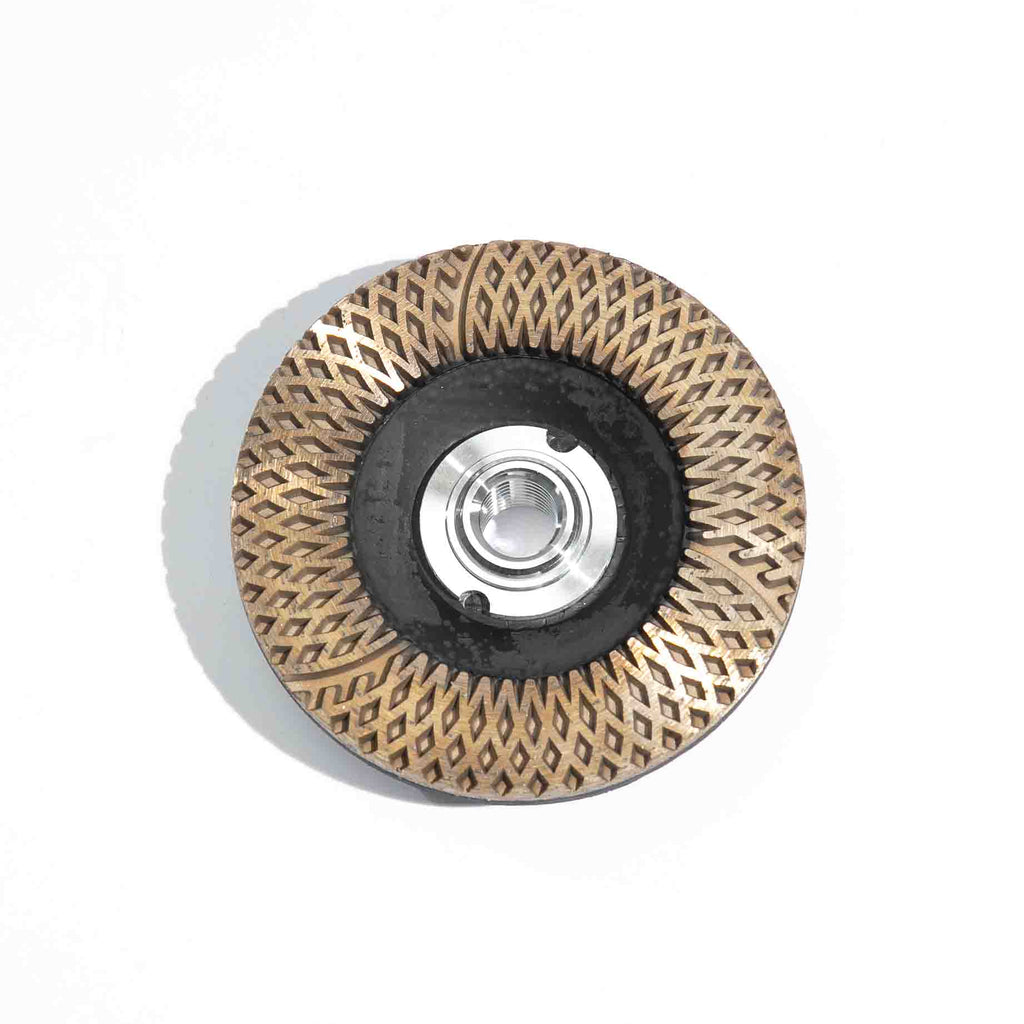

Diamax Cyclone Ultra Cup Wheel – 4 in., Coarse 30, for Dekton, Porcelain & Ultra-Compact
Diamax Cyclone Ultra Cup Wheel – 4 in., Coarse 30, for Dekton, Porcelain & Ultra-Compact
The Diamax Cyclone Ultra Cup Wheel is a 4 in. cup wheel, Coarse 30, for grinding and shaping Dekton, porcelain and other ultra-compact surfaces.
The body is fiberglass rather than steel, which is what keeps the wheel light on a hand grinder and damps vibration. Diamax specifies wet use only for this wheel.
Key Features
- Coarse 30 — one step of a three-step ladder (Coarse 30, Medium 50, Fine 100)
- 5/8 in.-11 thread, fiberglass body
- Operating range 3,200–6,500 RPM
- Wet use only
- Angle grinder or pneumatic machine
Not Recommended For
Not the wheel to buy for granite, marble or quartz. They appear on the manufacturer's capability list, but this is the sintered-material tool in the range: the bond is built to stay sharp in Dekton and porcelain, and a hard bond glazes on softer stone instead of releasing fresh diamond. For granite, marble and quartz at the same grade, use the SIERRA Resin-Filled Diamond Cup Wheel – 4 in., Coarse Grit.
Who Is This For?
Fabricators dressing Dekton and porcelain edges and cut-outs, where a standard cup wheel chips the glazed face.
Frequently Asked Questions
Can this wheel be used dry?
No. Diamax specifies wet use only for the Cyclone Ultra cup wheel, and running it dry will glaze the segments.
What grit is it?
It is the Coarse 30 step of a three-step ladder — Coarse 30, Medium 50 and Fine 100.
What speed range does it run at?
Diamax publishes an operating range of 3,200–6,500 RPM.
What does it thread onto?
A 5/8 in.-11 thread, fiberglass body, on an angle grinder or a pneumatic machine.
Can I use it on granite?
It is not recommended. Use a granite cup wheel such as the SIERRA Resin-Filled Diamond Cup Wheel – 4 in., Coarse Grit.
