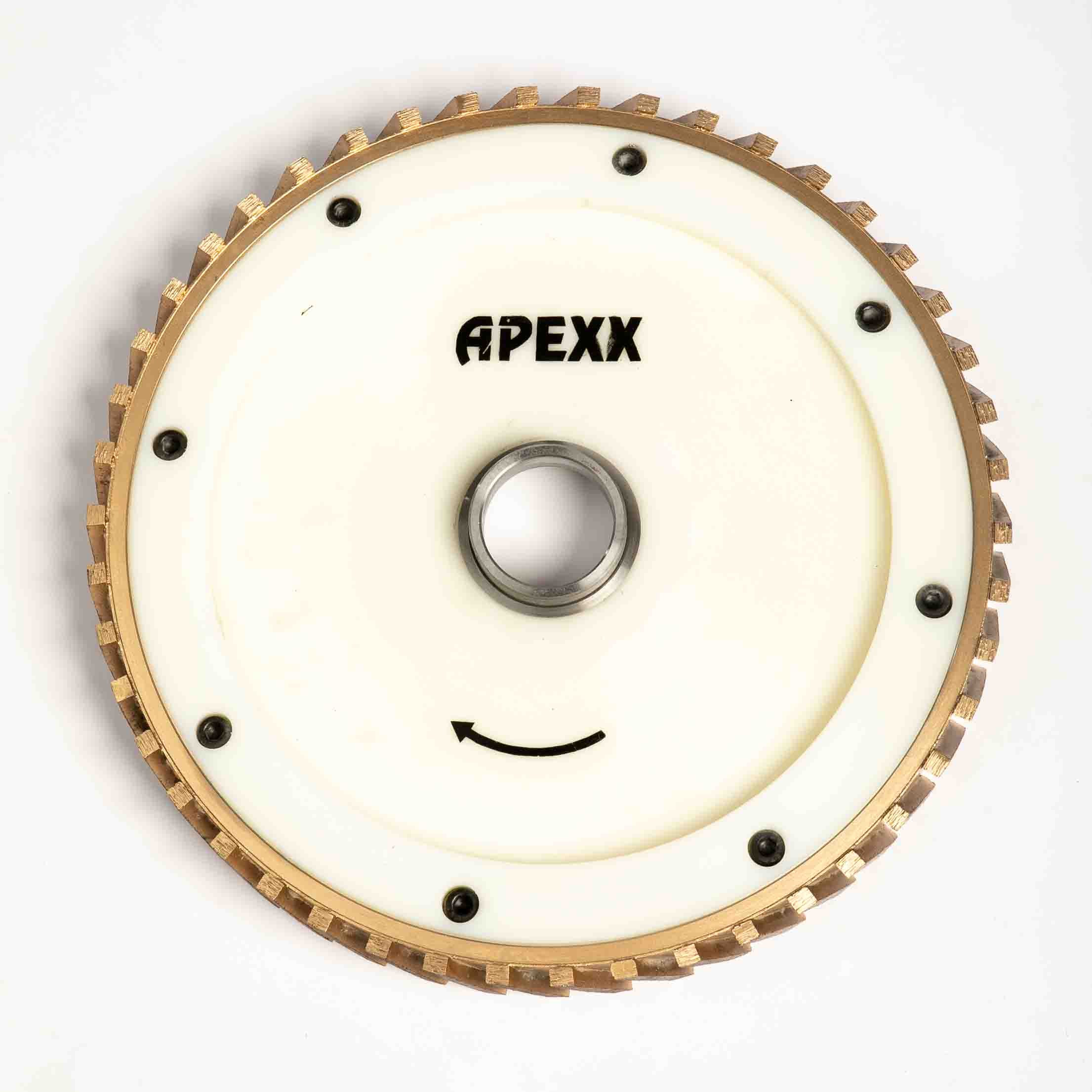

APEXX Teflon-Core Milling Wheel – 16 in., 40 mm Width, 60/50 mm Arbor
APEXX Teflon-Core Milling Wheel – 16 in., 40 mm Width, 60/50 mm Arbor
The APEXX Teflon-Core Milling Wheel is a 16 in. milling wheel with a 40 mm (1-1/2 in.) grinding width and a 60/50 mm arbor, made by Ocean Diamond for planing the concrete bed of a bridge saw and calibrating stone slabs. Ocean Diamond specifies wet use only. Ocean Diamond publishes a 1,700 max RPM rating for this wheel.
It is a bed-planing and calibrating wheel, not a cutting or polishing tool — it works the machine bed flat and takes a slab to thickness. Ocean Diamond recommends the Teflon core as the light-weight, reduced-noise option; the steel-core version is the alternative at the same 40 mm width and 60/50 mm arbor.
Key Features
- 16 in. diameter
- Grinding width: 40 mm (1-1/2 in.)
- Arbor: 60/50 mm
- Teflon-Core construction
- 1,700 max RPM
- Wet use only
- Ocean Diamond materials: concrete bed, engineered stone, granite
- Ocean Diamond: designed to plane the concrete bed of bridge saws and calibrate stone slabs
- Ocean Diamond: the Teflon core is recommended as a light-weight and reduced-noise option
Who Is This For?
Fabrication shops maintaining a bridge saw bed and calibrating slab to thickness, where the bed going out of flat shows up in every cut afterwards.
Frequently Asked Questions
What is a milling wheel for?
Ocean Diamond designs it to plane the concrete bed of a bridge saw and to calibrate stone slabs — flattening the bed and bringing slab to a consistent thickness.
Does it need water?
Yes. Ocean Diamond specifies wet use only.
What is the difference between the Teflon core and the steel core?
Ocean Diamond builds both and recommends the Teflon core as the light-weight and reduced-noise option. Grinding width and arbor are the same at 40 mm and 60/50 mm.
What arbor does it take?
The milling wheel takes a 60/50 mm arbor.
What speed is it rated to?
Ocean Diamond publishes 1,700 max RPM for this wheel.
