Omni Cubed Edge Seamer Seam Leveling Clamp – 10 in. Rail, 10 in. x 3.5 in. x 5 in.
Omni Cubed Edge Seamer Seam Leveling Clamp – 10 in. Rail, 10 in. x 3.5 in. x 5 in.

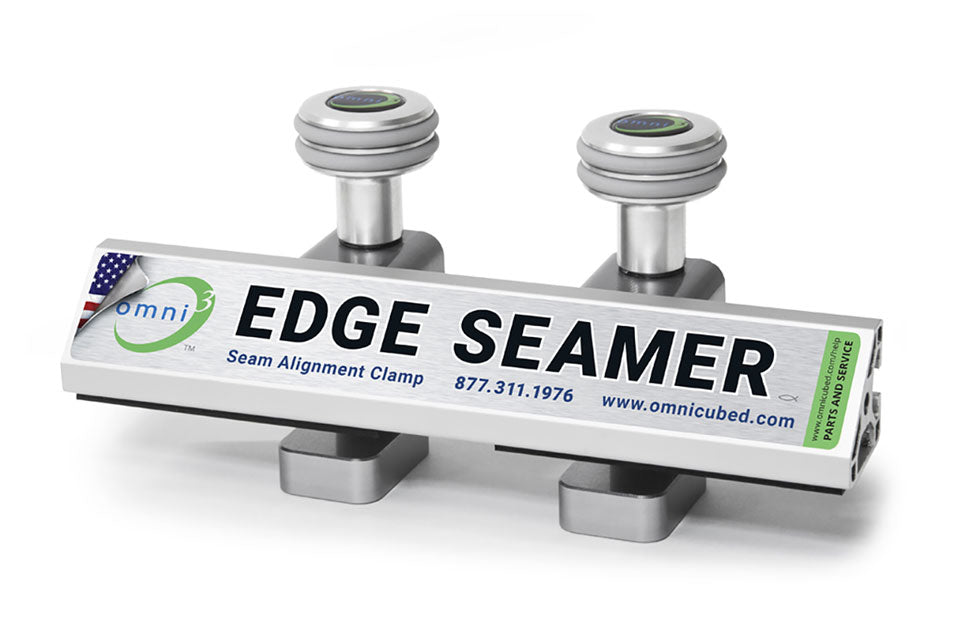

The Omni Cubed Edge Seamer is a 10 in. mechanical rail clamp that levels a joint along the edge of the material and takes the twist out of sink rails and cutouts. It grips material from 0.55 in. to 1.97 in. (14-50 mm) thick, measures 10 in. x 3.5 in. x 5 in. and weighs 2.9 lb.
It is a mechanical clamp, not a vacuum tool: there is nothing to pump and no cup to seal, so it works on a narrow sink rail where a suction cup has no flat face to grip. It can be used on its own or on the same joint as a vacuum seam setter.
Key Features
- 10 in. rail in anodized aluminum and stainless steel, 10 in. x 3.5 in. x 5 in. overall
- Two adjustment clamps supplied with the rail
- 0.55-1.97 in. (14-50 mm) clamping range covers standard and built-up edge thicknesses
- Mechanical clamping action - no pump, no vacuum cups, no battery
- 2.9 lb, light enough to leave clamped while adhesive sets
What's Included
- One 10 in. Edge Seamer rail
- Two adjustment clamps
Who Is This For?
Countertop fabricators and installers who need to flatten a seam at a sink cutout or along a material edge, and shops that want a mechanical alternative to stacking shims. It suits anyone already running a vacuum seam setter who needs a second tool for the narrow rail sections a cup cannot hold.
Frequently Asked Questions
What thickness of material does the Edge Seamer clamp?
The Omni Cubed Edge Seamer has a clamping range of 0.55 in. to 1.97 in. (14-50 mm).
Is this a vacuum seam setter?
No. This is a mechanical rail clamp - it grips the material rather than holding it with suction, so it needs no pump, cups or power. For joining and leveling two full countertop sections with vacuum cups, the Omni Cubed Stealth Seamer Seam Setter with 8 in. cups is the vacuum tool in the same range.
Can it be used alongside a vacuum seam setter?
Yes. A mechanical edge clamp and a vacuum seam setter act on different parts of the same joint, so both can be applied to one seam at the same time.
What is it used for at a sink cutout?
A narrow sink rail is the part of a countertop most likely to twist out of plane, and a 10 in. rail clamp pulls that twist out and holds the two edges level while the adhesive cures.
