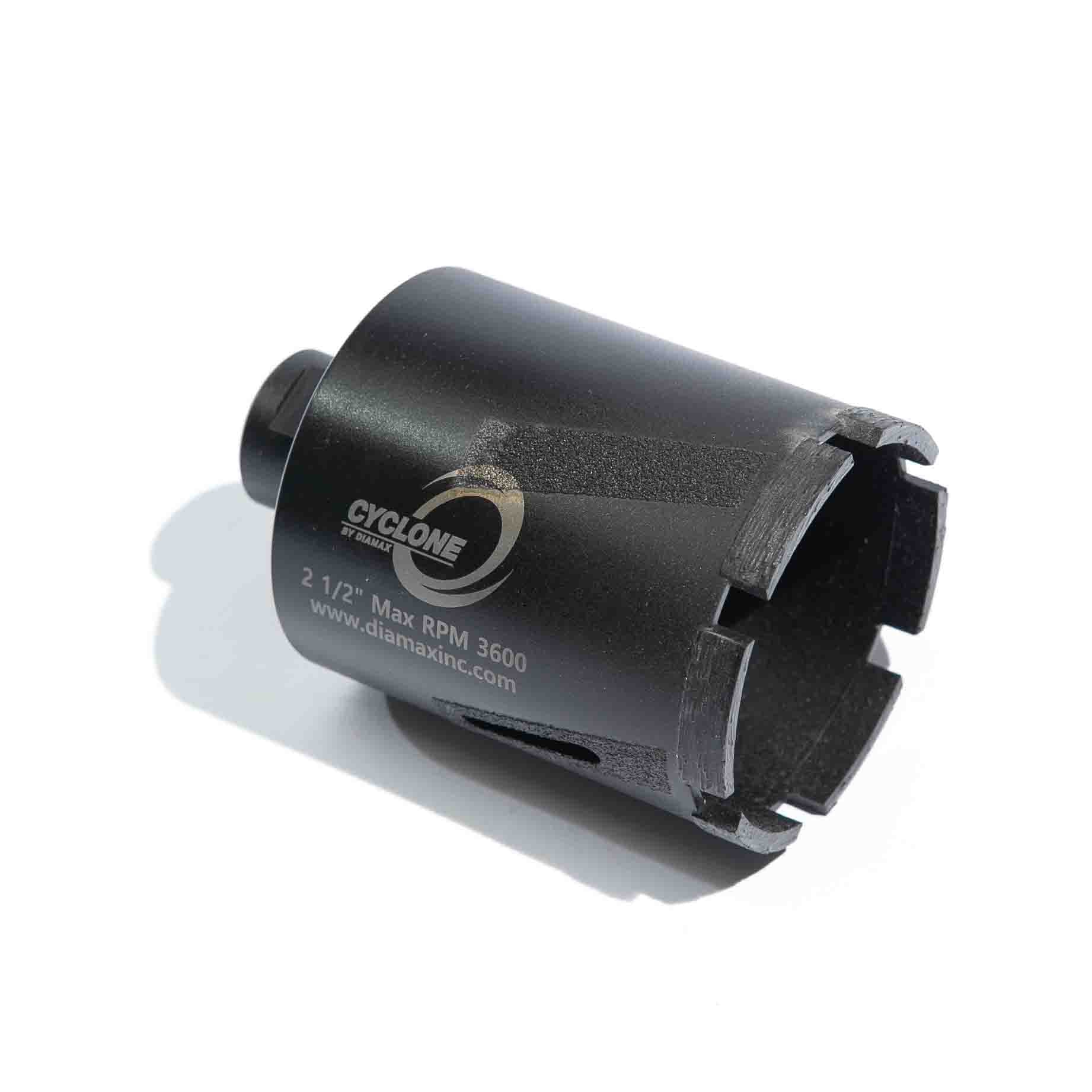

Diamax Cyclone Dry Wet Core Bit – 2-1/2 in., for Granite, Quartz & Porcelain
Diamax Cyclone Dry Wet Core Bit – 2-1/2 in., for Granite, Quartz & Porcelain
The Diamax Cyclone Dry Wet Core Bit is a 2-1/2 in. core bit with a 3 in. usable depth for drilling faucet and fixture holes in granite, quartz and porcelain.
It threads onto any 5/8 in.-11 thread spindle, so it runs on an angle grinder, a drill or an air polisher, wet or dry, and Diamax publishes a 3 in. usable barrel for the whole line.
Key Features
- 2-1/2 in. coring diameter, 3 in. usable barrel length
- Published for granite, quartz and porcelain
- 5/8 in.-11 thread — angle grinder, drill or air polisher
- Wet or dry drilling
Not Recommended For
Diamax does not publish this bit for marble; its marble bits are vacuum brazed, such as the Diamax Cyclone 1-3/8 in. Core Bit – Vacuum Brazed for Marble. For Dekton and other ultra-compact surfaces the Cyclone Ultra core bit line is the one Diamax builds for sintered material — we stock it to 2 in. (Diamax Cyclone Ultra Core Bit – 2 in., for Dekton, Porcelain & Ultra-Compact) and Diamax publishes it to 4 in.
Who Is This For?
Countertop shops drilling faucet holes and fixture openings in granite and quartz, and porcelain work where a deep barrel is needed in one pass.
Frequently Asked Questions
What materials does this bit drill?
Granite, quartz (engineered stone) and porcelain.
How deep will it drill?
Diamax publishes a usable barrel length of 3 in. for this line.
What thread does it use?
It threads onto a 5/8 in.-11 thread.
Wet or dry?
Both. Wet drilling is faster and much easier on the segment; dry is for short work where water is impractical.
Can I drill Dekton with it?
The title scope for this bit stops at porcelain. For Dekton, use the Cyclone Ultra core bit line, which Diamax builds for sintered material — published from 1 in. to 4 in. and stocked here to 2 in., such as the Diamax Cyclone Ultra Core Bit – 2 in., for Dekton, Porcelain & Ultra-Compact.
