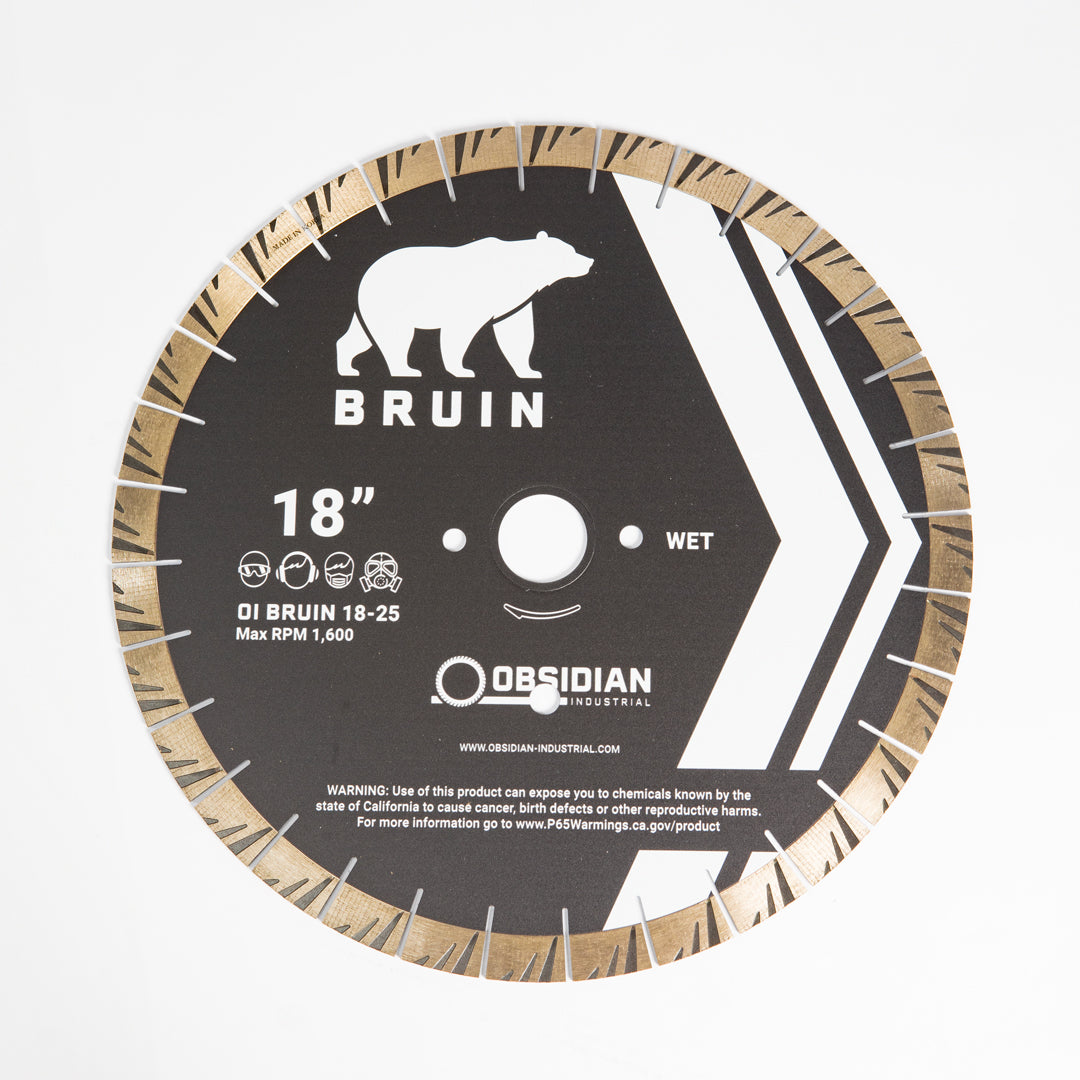

BRUIN Bridge Saw Blade – 18 in. Diameter, 25 mm Segment
BRUIN Bridge Saw Blade – 18 in. Diameter, 25 mm Segment
The BRUIN Bridge Saw Blade is an 18 in. bridge saw blade with 25 mm segments for wet cutting engineered stone and natural stone slabs.
It is rated at 1,600 maximum RPM – lower than the 14 in. blade in the same line, as the larger diameter requires – and is a wet-cut blade only. Published feed rates are up to 300 in./min in engineered stone and up to 200 in./min in natural stone, and the 18 in. was tested over more than 350 quartz slabs. Arbor size is not published, so confirm the bore against your saw before ordering.
Key Features
- 18 in. diameter – the largest of the three sizes in this line, for the deepest cut
- 25 mm segment, published as an explicit spec on the manufacturer page
- 1,600 max RPM
- Wet use only
- Feed rate up to 300 in./min in engineered stone, up to 200 in./min in natural stone
- Tested over 350 quartz slabs at 18 in.
- Arbor / bore size not published
What's Included
- 1 x 18 in. bridge saw blade
Who Is This For?
Shops running an 18 in. bridge saw who need the extra depth of cut on thick slabs, mitres and deep rips in quartz and granite. It is not the blade for Dekton and porcelain – the published material list covers engineered and natural stone – so use the Italdiamant EvoGres Plus Bridge Saw Blade – 18 in. for those, and drop to the 14 in. or 16 in. BRUIN if your saw's arbor and guard will not take 18 in.
Frequently Asked Questions
What is the maximum RPM of the 18 in. blade?
1,600 RPM is the published maximum for the 18 in. BRUIN bridge saw blade. The 14 in. blade in the same line is rated higher, at 2,000 RPM.
Is it a wet or dry blade?
Wet only. The BRUIN bridge saw blades are specified for wet cutting and need water through the cut.
How many slabs should I expect from it?
The manufacturer states the 18 in. blade was tested over 350 quartz slabs; the 14 in. was tested over 300.
What feed rate is published?
Up to 300 in./min in engineered stone and up to 200 in./min in natural stone.
