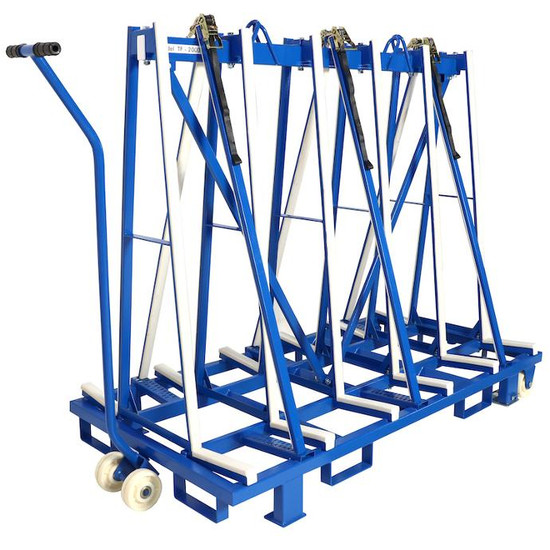

TRANSPORT FRAME TF2000 PC
$1,729.00
Sturdy structure, designed to eliminate any risk of the slab tipping over Slabs are placed on special rubber profiles and secured with 6 locking bars together with ratchet straps to retain materials.
The frame features 2 hooking points to be picked up by an overhead crane Reinforced with two oblique bars for the firm and secure construction Built-in forklift receivers on all sides for lifting by forklift The base and uprights come with replaceable white rubber to prevent marking and scratches.
Counter-lever handle with wheels, allow the frame to be moved manually even when loaded. Counter-lever handle is used to jack uploaded frame and lower support legs when wheels are not required.
Powder-coated finish, which ensures an aesthetic feature as well as the durability of the product Option: The frames can be hot galvanized finished upon request.
Note: Support legs should always be lowered when a loaded frame is being transported on a truck.
Specifications:
- Number of wheels 4
- Straps of each side 3
- Width of slab storage base area on each side 10.6"
- Length 78.7"
- Working load limit per side 2756
- Total working load limit 5511
- Net weight 401
- Gross weight 414
- Packaging dimension 78.7"x40.2"x16.5"
