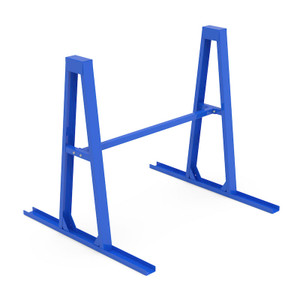

Aardwolf Transport Frame Mod TF 3050

The Aardwolf Transport Frame Mod TF 3050 is a transport A-Frame ideal for transporting and storing material within the factory or transporting material installation site. Great for the fabrication shop and install truck. Transport stone, glass, panels, slabs, and sheets. Crafted with precision by the trusted brand Aardwolf, thid transport frame is constructed with high-quality materials, ensuring durability and longevity, making it the perfect investment for any business.

Features:

• Frames are delivered with bolts pre-installed.
• Frames are easily assembled.
• Sturdy structure, designed to eliminate any risk of the slab tipping over.
• Slabs are placed on special rubber profiles and secured with 6 locking bars together with ratchet straps to retain materials.
• The frame features 2 hooking points to be picked up by an overhead crane.
• Two diagonal stays create a very strong, ridged design.
• Built-in forklift receivers on two long sides for lifting by forklift.
• The base and uprights come with replaceable white rubber to prevent marking and scratches.
• Counter-lever handle with wheels, allow the frame to be moved manually even when loaded.
• Counter-lever handle is used to jack uploaded frame and lower support legs when wheels are not required.
• Powder-coated finish, which ensures an aesthetic feature as well as the durability of the product.
• Option: Frames can be hot galvanized finished upon request.
• Note: Support legs should always be lowered when a loaded frame is being transported on a truck.

Specifications:

• Width of slab storage base area on each side: 10.6"
• Length: 120"
• Straps with each side: 5
• Working load limit per side: 2756 lbs
• Total working load limit: 5511 lbs
• Net weight: 527 lbs
• Gross weight: 540 lbs
• Packaging dimension: 120" x 44" x 16.9"
